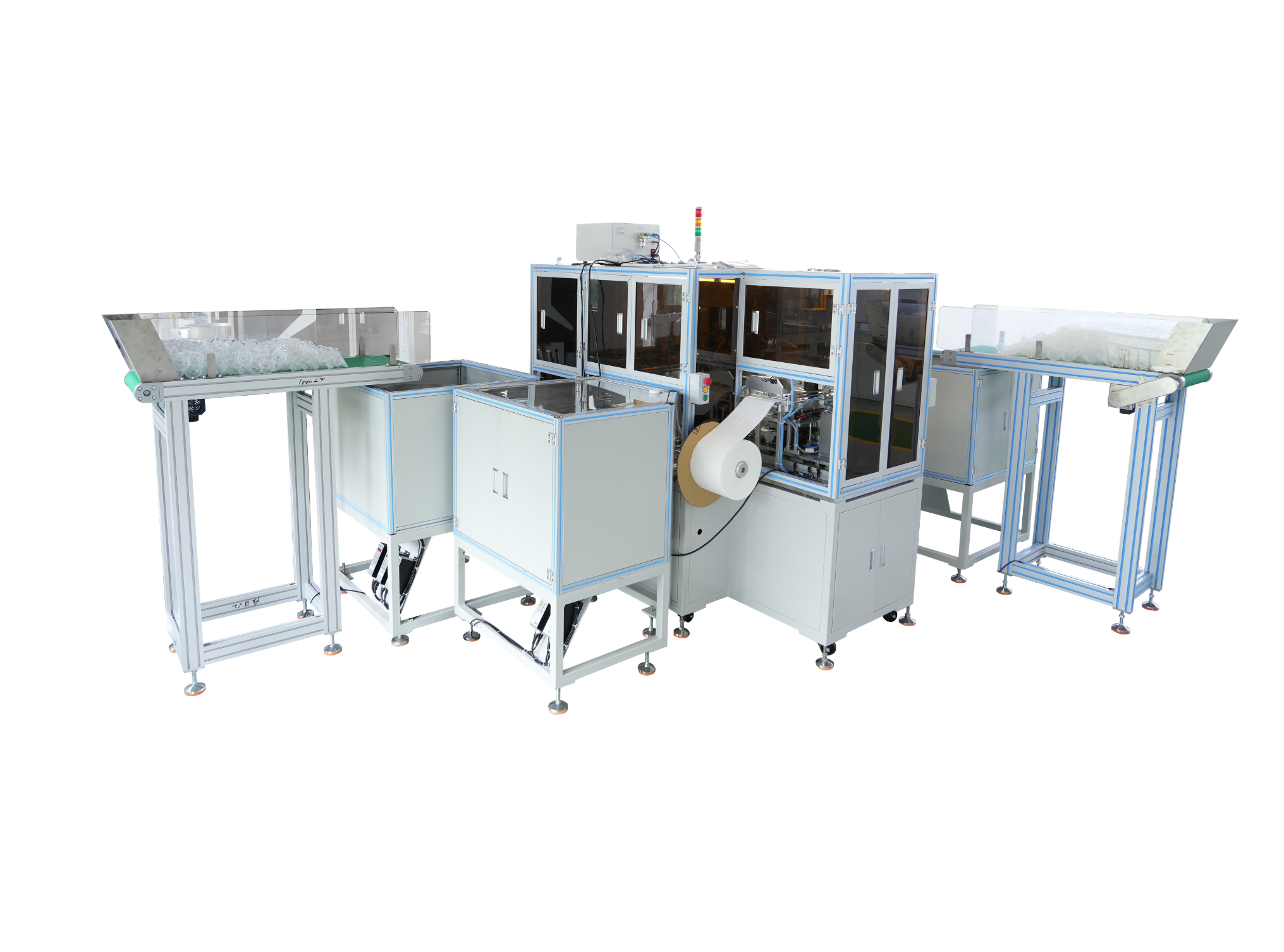

HME Breathing Filter Assembly Machine

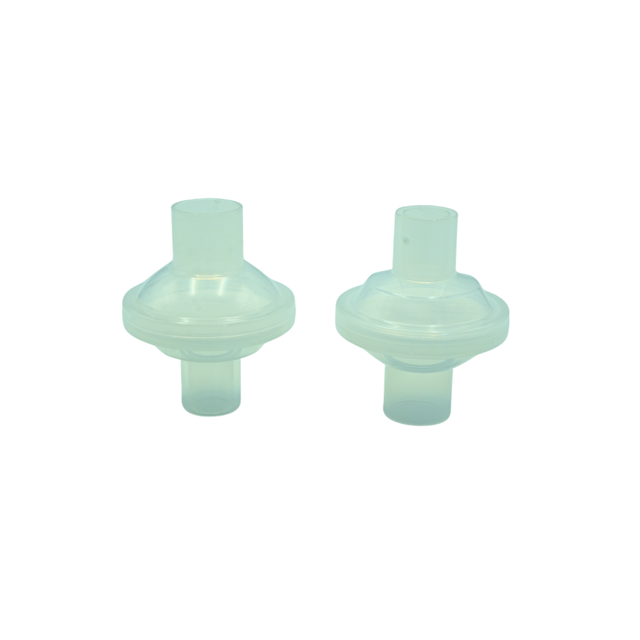

HME Breathing Filter Assembly Machine (2)

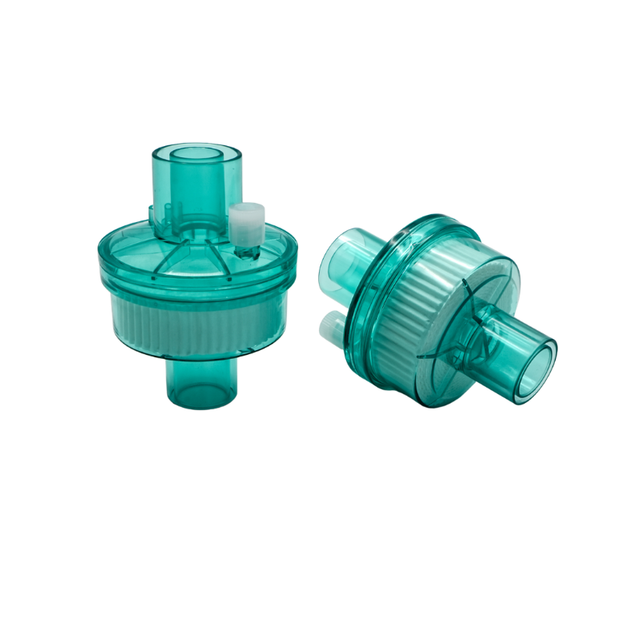

HME Breathing Filter Assembly Machine2

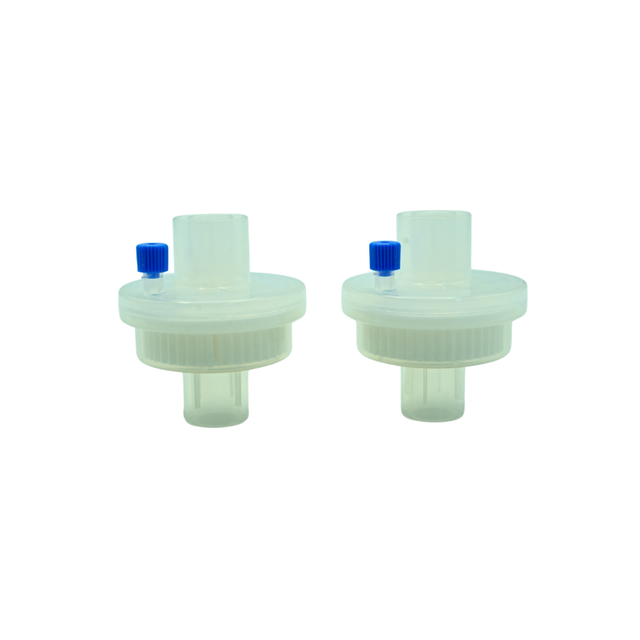

HME Filter Assembly Machine

AUTOMATIC ASSEMBLY MACHINE FOR HME BREATHING FILTERS

The HME Breathing Filter Assembly Machine is designed for the automatic assembly of heat and moisture exchange (HME) breathing filters used in respiratory and medical applications.

The machine integrates automatic material feeding, component assembly, ultrasonic welding, servo-controlled locking, air tightness testing, and finished product discharge into one automated production process.

With a production capacity of up to 1,100 pcs/hour, the automatic HME breathing filter assembly machine helps manufacturers reduce manual assembly, improve production consistency, and strengthen quality control during continuous production.

Machine Parameters：

 Control Mode：    PLC Control
 Machine Dimensions：    L3500*W2200*H1800MM
 Capacity：    1100 pcs/hour
 Voltage:    220V
 Weight :    3000KG
 Power：    6KW
 Special Requirement：


Automatic Assembly Machine for HME Breathing Filters YouTube Video
Key Features & Advantages

Fully Automatic HME Breathing Filter Assembly



The HME breathing filter assembly machine completes the production process automatically from material feeding to finished product discharge.

By integrating multiple assembly processes into one machine, manufacturers can reduce repetitive manual operations and improve overall production efficiency.

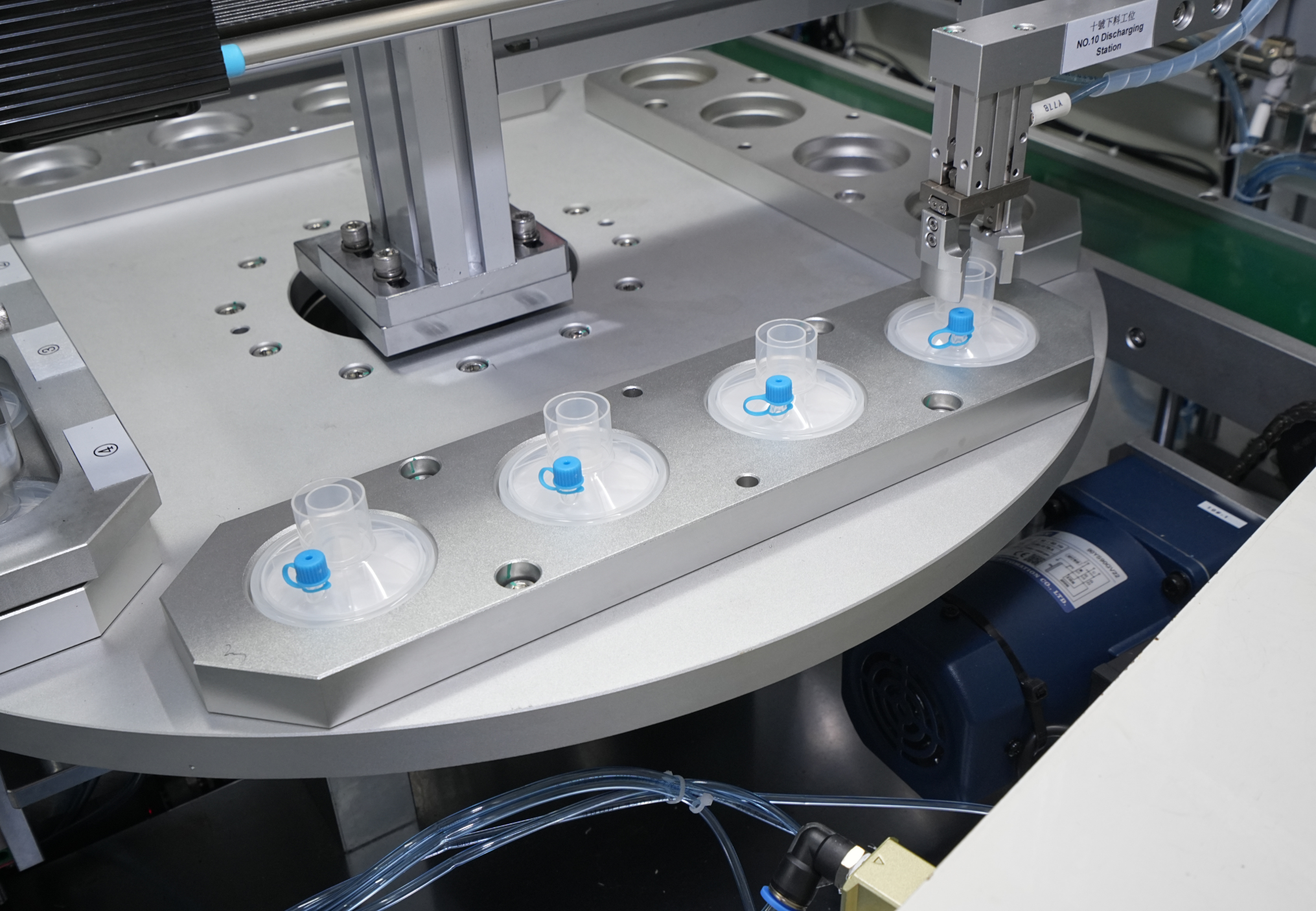

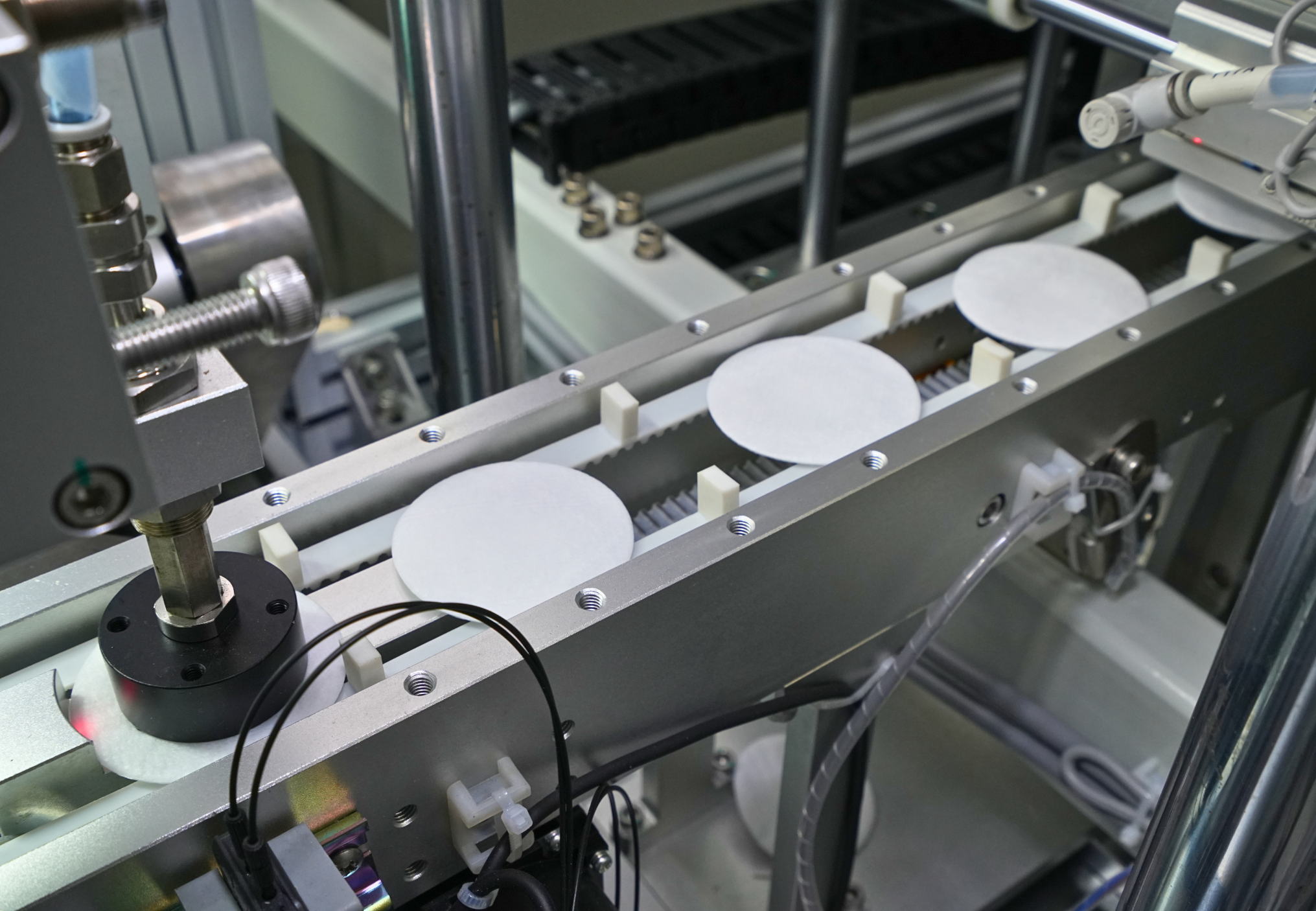

HME Breathing Filter Assembly
HME Breathing Filter Assembly

Ultrasonic Welding for Reliable Product Assembly




The machine adopts ultrasonic welding technology to securely join HME breathing filter components.

Compared with manual assembly, controlled ultrasonic welding helps maintain more consistent product connections and supports stable continuous production.

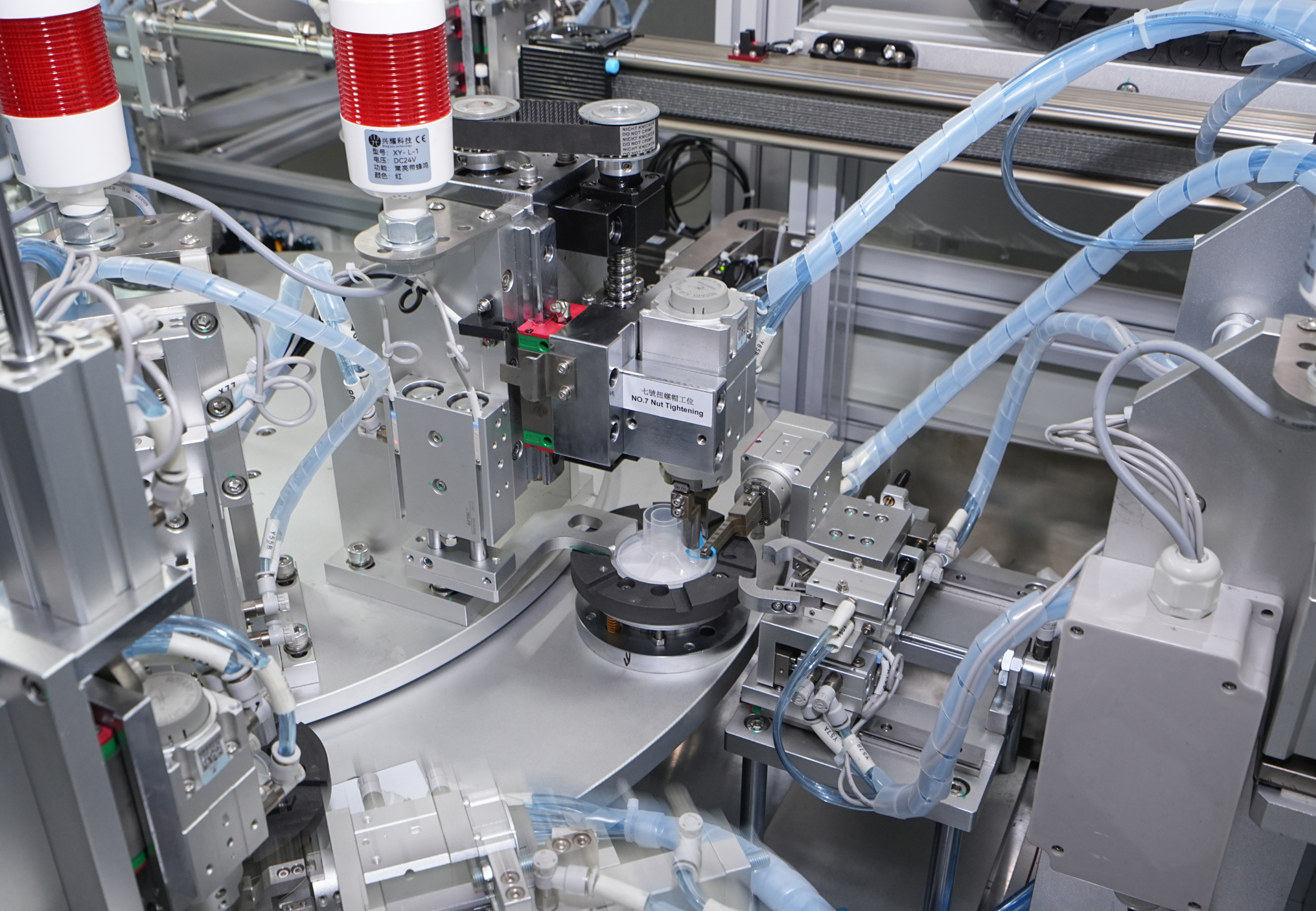

Servo-Controlled Locking for Consistent Torque



The automatic HME filter assembly machine uses a servo-controlled locking system to maintain consistent screw-cap tightening torque during assembly.

Accurate torque control helps reduce variations between finished products and improves assembly consistency during mass production.

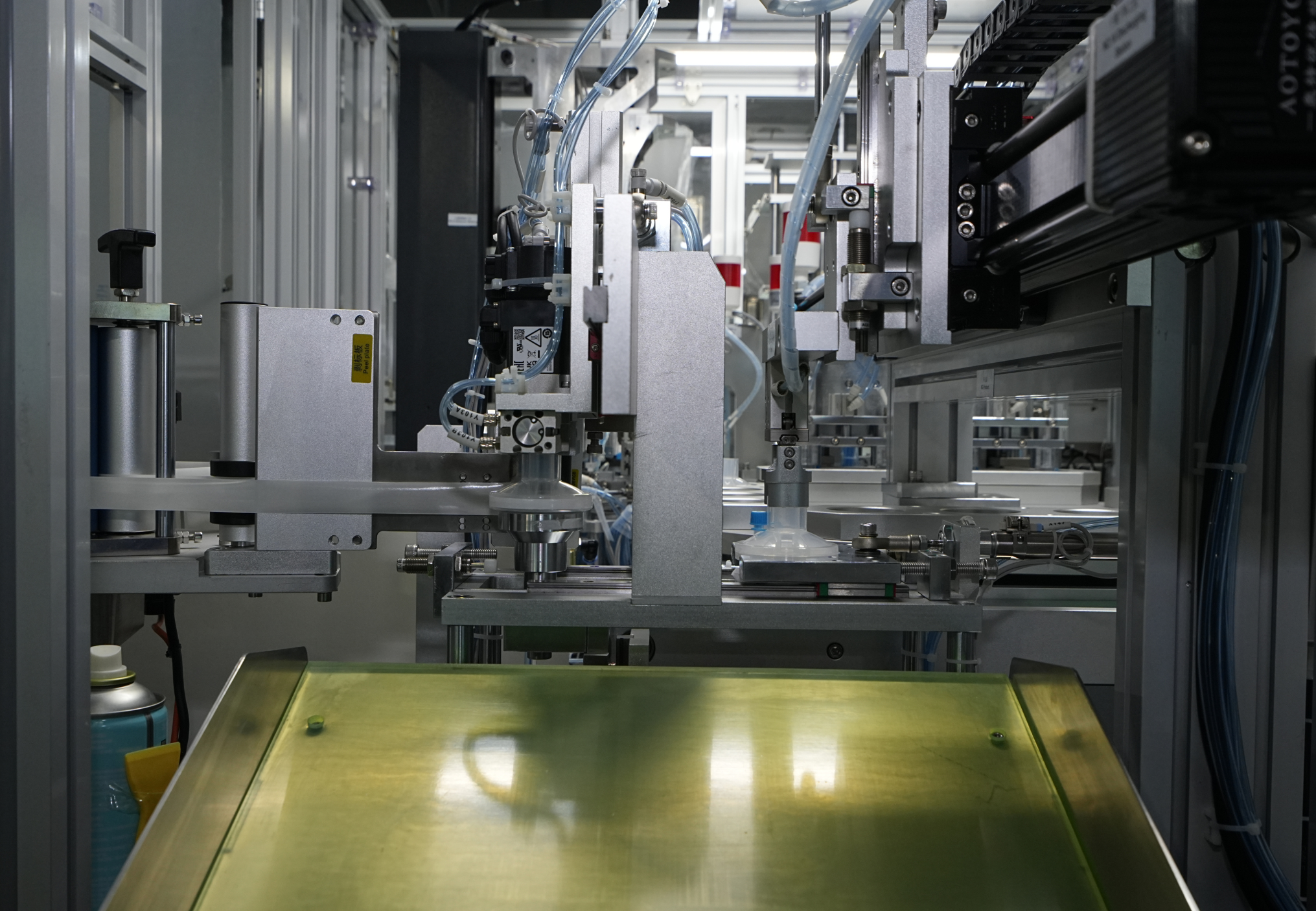

HME Breathing Filter Assembly
HME Breathing Filter Assembly

Automatic Air Tightness Testing




An integrated air tightness testing system automatically checks assembled HME breathing filters during production.

The system differentiates qualified products from defective products, helping manufacturers improve inspection efficiency and reduce the risk of defective products entering subsequent production processes.

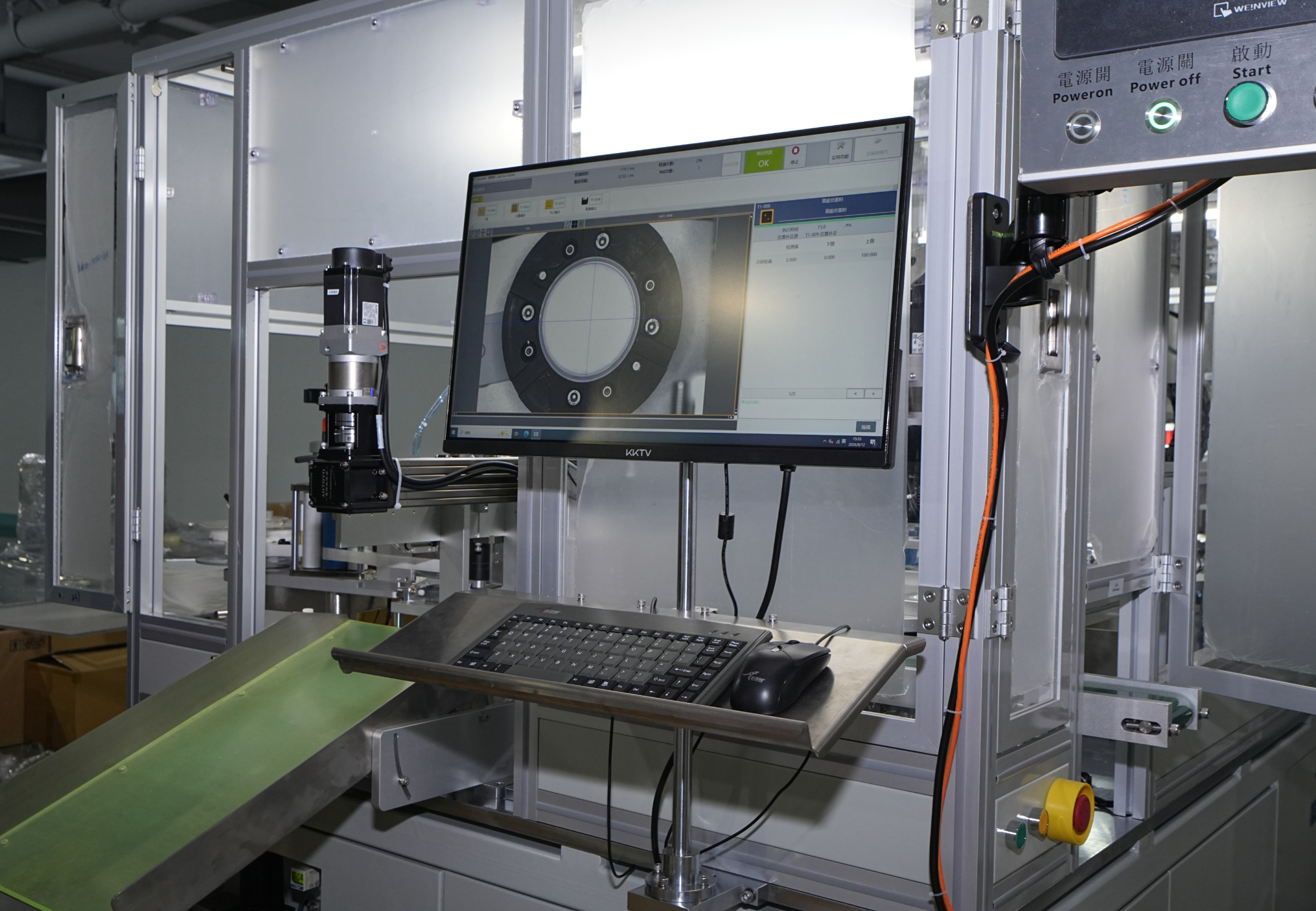

PLC-Controlled Automatic Production



The machine adopts a PLC control system for centralized machine operation and production control.

Operators can monitor equipment status and manage the automatic assembly process through the control system, supporting stable and repeatable production.
HME Breathing Filter Assembly
Why Choose Us​​​​​​​​​​​​​​
  • HengYao specializes in automatic production equipment for medical consumables.

    For HME breathing filter production, our engineering team evaluates the customer's product structure, assembly process, production requirements, and finished product samples before determining the equipment configuration.

    The HME breathing filter assembly machine combines automatic assembly with ultrasonic welding, servo-controlled locking, and air tightness testing to help manufacturers build a more efficient and consistent production process.​​​​​​​
    Read More
    Inquire
Optional Customizations / Non-Standard Solutions

Frequently Asked Questions

  • Q Can the machine be customized for different HME breathing filters?

    A

    The machine configuration can be evaluated according to the customer's HME breathing filter samples, product structure, and production requirements. Customers are recommended to provide product samples or technical drawings for evaluation.

  • Q Is the entire assembly process automatic?

    A

    Yes. The machine is designed for automatic production from material feeding through assembly and inspection to finished product discharge, reducing the need for repetitive manual operations.

  • Q Can the machine automatically detect defective HME filters?

    A

    Yes. The machine is equipped with an air tightness tester that checks assembled products and differentiates qualified products from defective products.

  • Q How does the machine control locking consistency?

    A

    The machine uses a servo-controlled locking system to maintain consistent screw-cap tightening torque, helping improve assembly repeatability between finished products.

  • Q Does the machine use ultrasonic welding?

    A

    Yes. The machine adopts ultrasonic welding technology to securely join HME breathing filter components during the automatic assembly process.

  • Q What is the production capacity of the machine?

    A

    The machine has a production capacity of up to 1,100 pcs/hour.

  • Q What is an HME breathing filter assembly machine?

    A

    An HME breathing filter assembly machine is automated equipment used to assemble heat and moisture exchange breathing filters. It can integrate material feeding, component assembly, ultrasonic welding, servo locking, air tightness testing, and finished product discharge into one production process.
