Endotracheal Tube Assembly Machine
Endotracheal Tube Assembly Machine
Endotracheal Tube Assembly Machine
Endotracheal Tube Assembly Machine

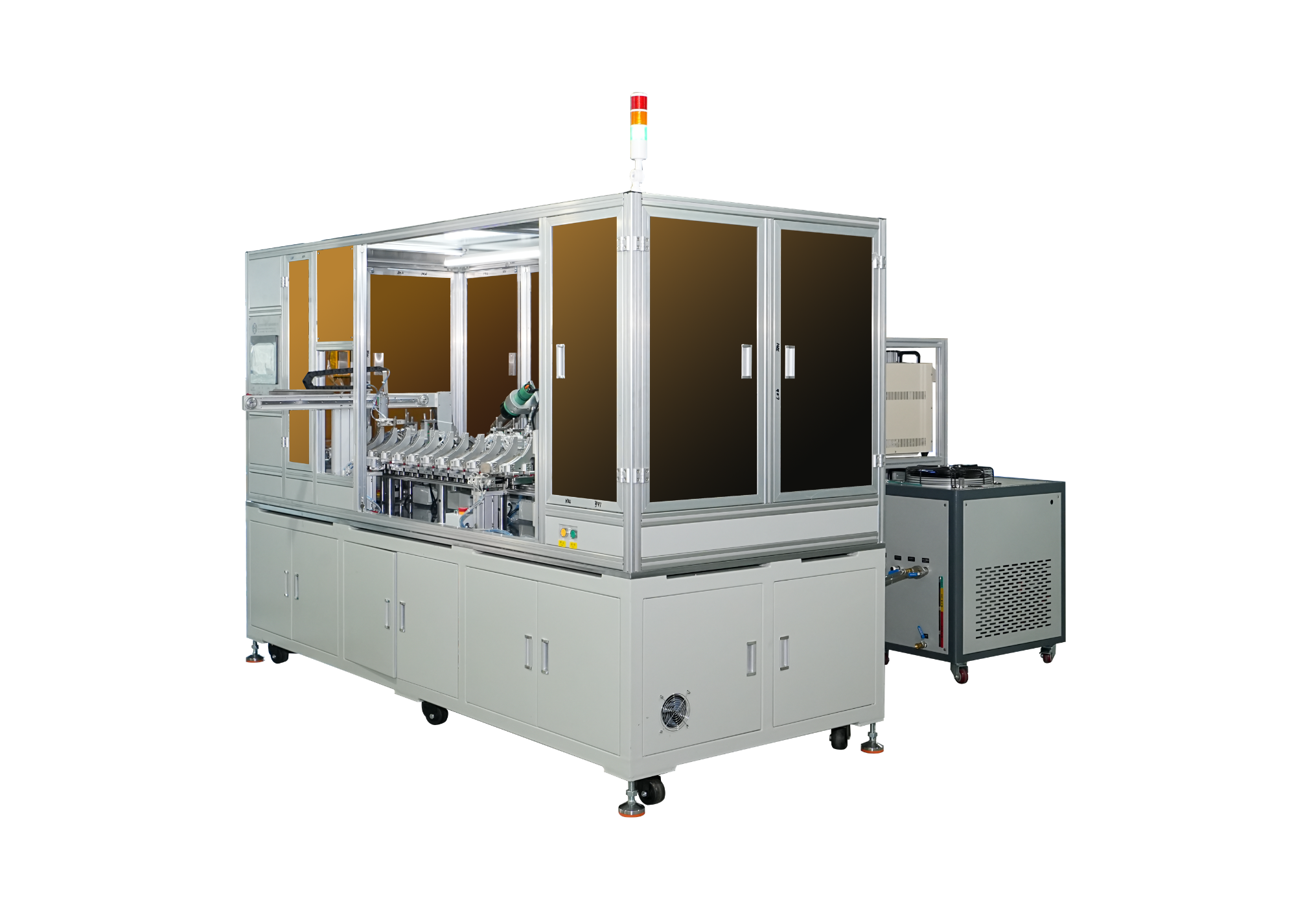

AUTOMATIC ENDOTRACHEAL TUBE ASSEMBLY MACHINE

The Automatic Endotracheal Tube Assembly Machine is designed for automated processing and assembly of endotracheal tubes. The machine integrates high-precision forming, hot punching, tip forming, beveling, side-hole processing and assembly functions into one automated production system.

Equipped with a high-precision forming mold and PLC control system, the machine provides consistent processing quality and stable production performance. The hot punching process produces smooth hole surfaces to help improve the comfort of the finished endotracheal tube.

With a production capacity of up to 700 pcs/hour, the machine is suitable for automated endotracheal tube production and assembly applications. The machine supports a size range from FR6.0 to FR8.5.

Machine Parameters：

 Control Mode：    PLC Control
 Machine Dimensions：    L2700 × W1500 × H1800 mm
 Capacity：    700pcs/hour
 Voltage:    220V
 Weight :    1000KG
 Power：    5KW
 Applicable Size：    FR6.0–FR8.5


Automatic Endotracheal Tube Assembly Machine YouTube Video
Key Features & Advantages

Flexible Assembly for Endotracheal Tubes with Connectors



Endotracheal Tube Assembly Machine supports the production and assembly of endotracheal tubes with connectors, providing greater flexibility for different product configurations. The integrated assembly process helps improve production consistency while reducing repetitive manual operations.

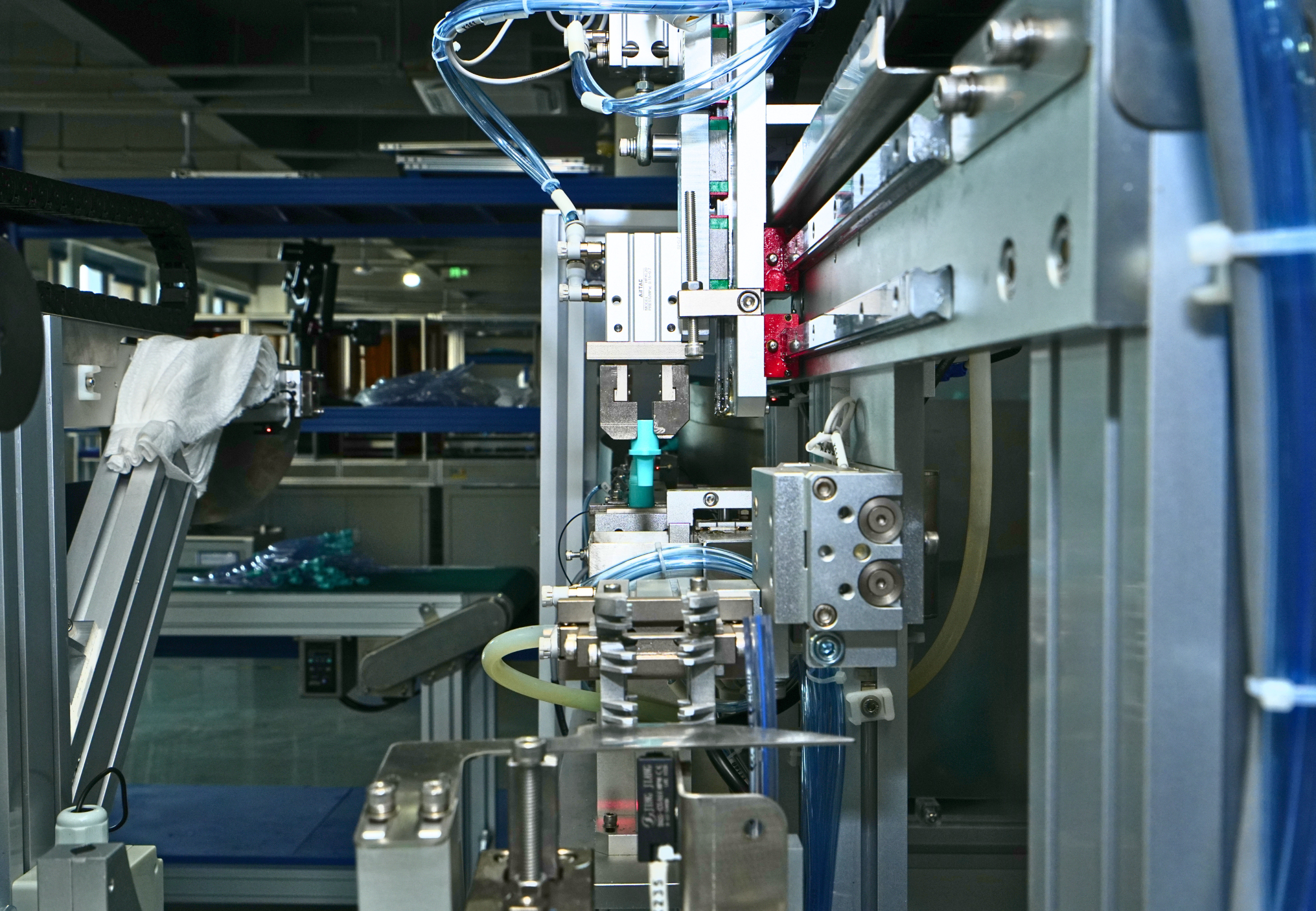

Endotracheal Tube Assembly Equipment

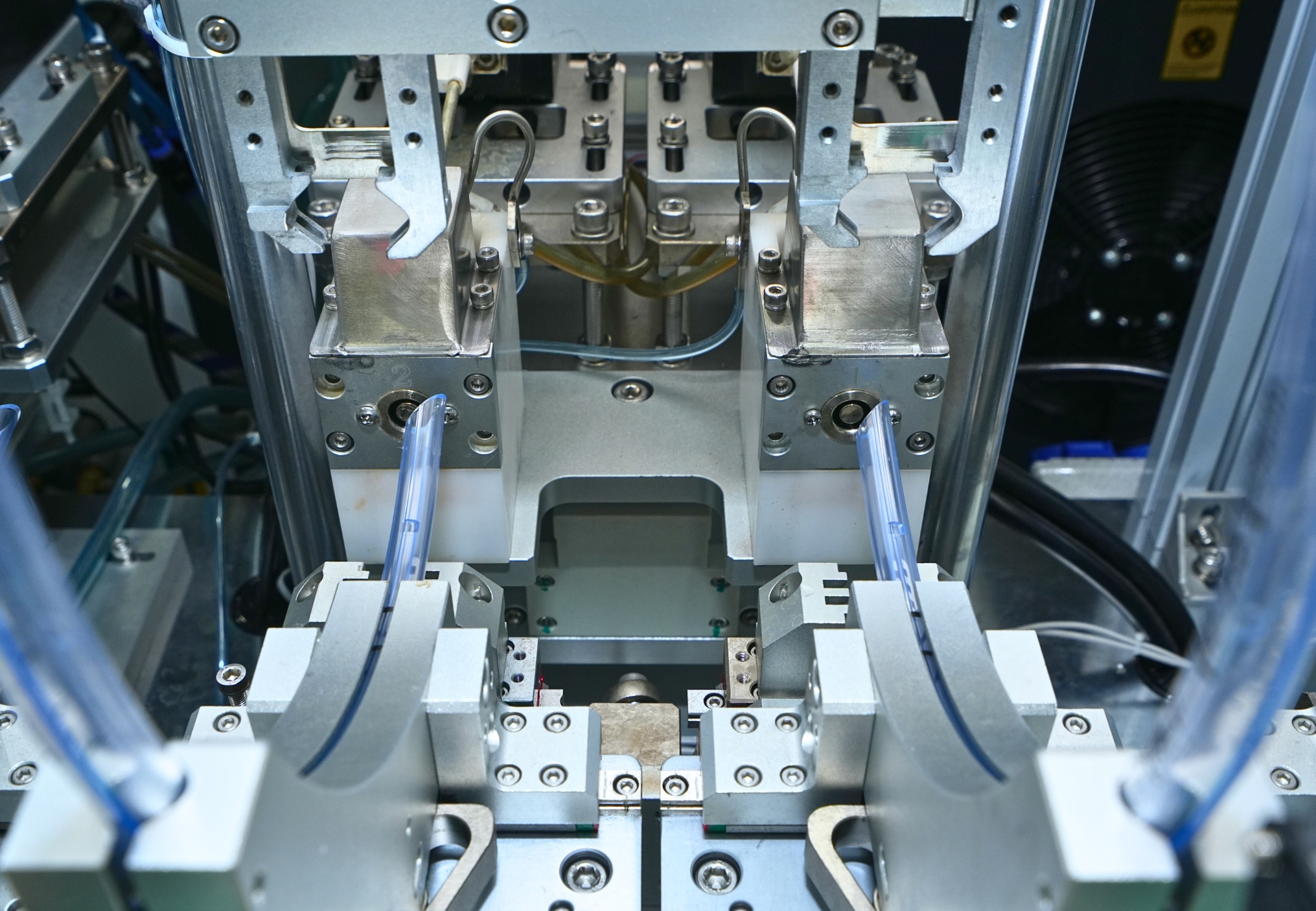

Endotracheal Tube Assembly Equipment (2)

Integrated Multi-Process Tube Processing




Endotracheal Tube Assembly Machine integrates thermoforming, hot punching, tip forming, beveling, Murphy eye and side-hole processing, as well as assembly functions into one automated system. This integrated design simplifies the production process and improves overall manufacturing efficiency.

High-Precision Thermoforming for Consistent Tube Quality



 Equipped with a high-precision forming mold and thermoforming process, the machine helps maintain consistent tube shape and forming quality. The controlled forming process is suitable for stable production of endotracheal tubes in different specifications.

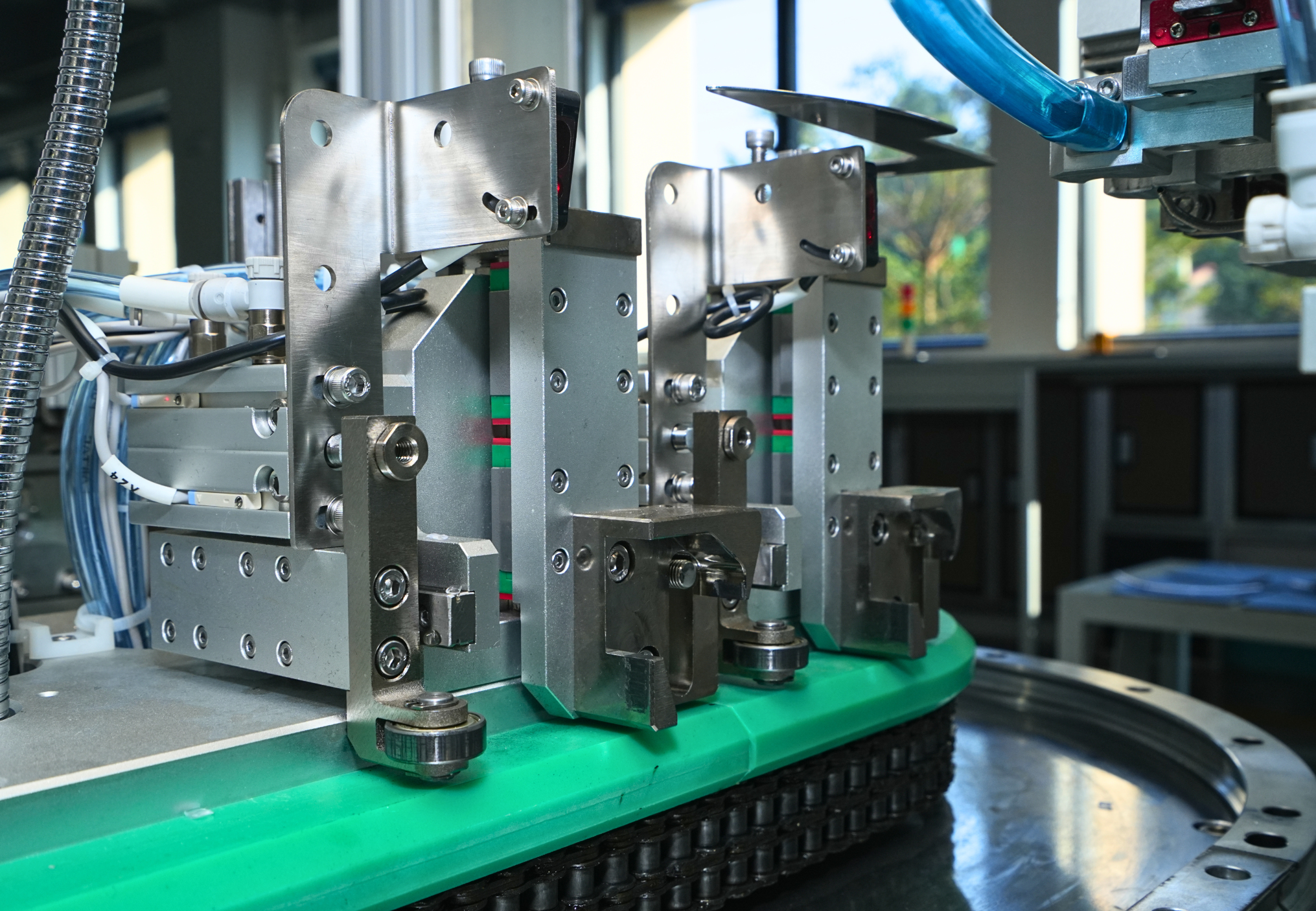

Endotracheal Tube Assembly Equipment

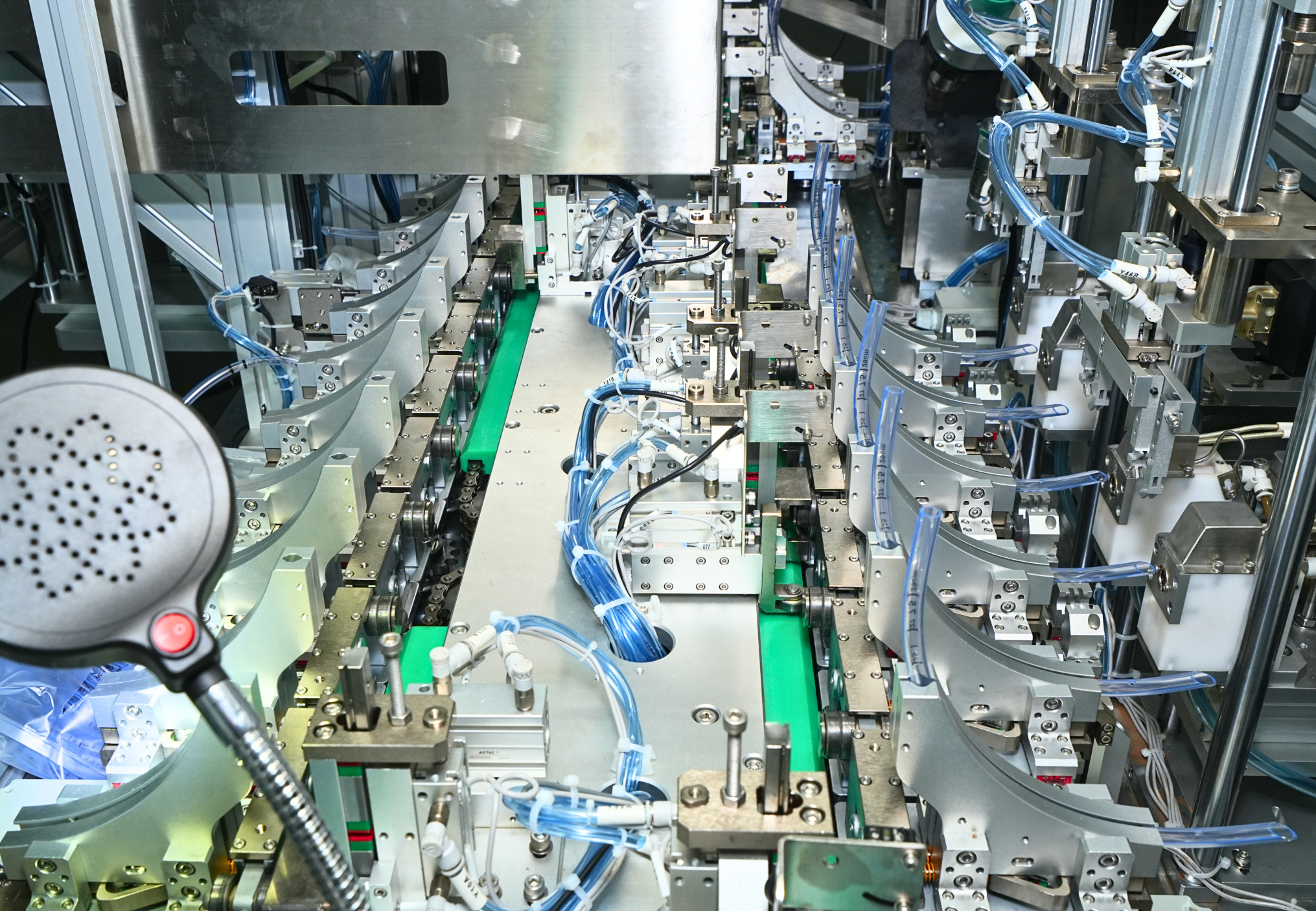

Endotracheal Tube Assembly Equipment (4)

Smooth Hot Punching for Improved Product Quality




The hot punching process creates smooth hole surfaces and helps reduce rough edges during hole processing. This contributes to more consistent finished-product quality and helps improve the overall comfort of the endotracheal tube.

PLC-Controlled Automatic Production



 The PLC control system coordinates the machine's processing and assembly operations for stable and efficient automated production. With a capacity of up to 700 pcs/hour and compatibility with FR6.0–FR8.5 specifications, the machine is designed for continuous medical tube production.

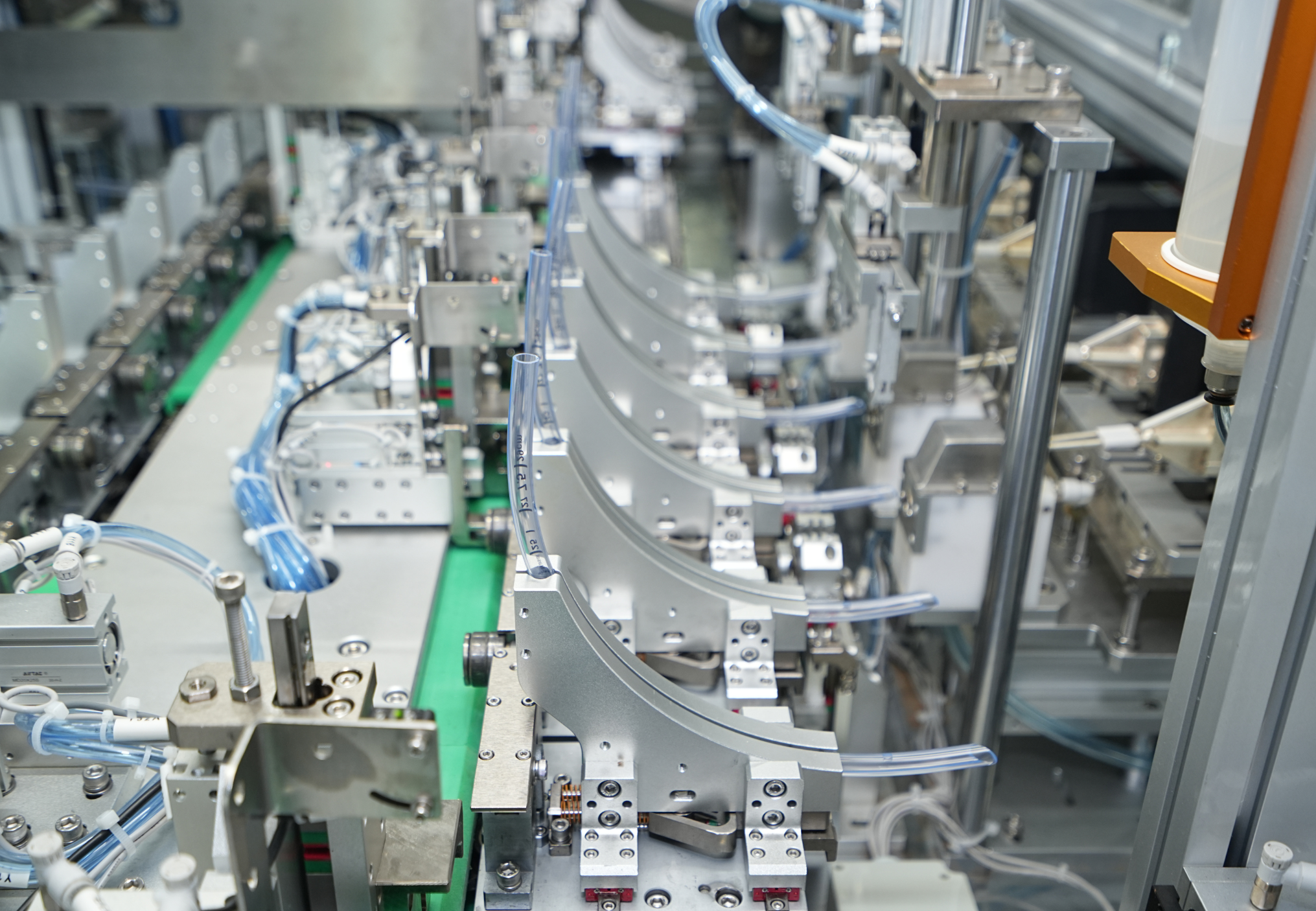

Endotracheal Tube Assembly Equipment (3)
Why Choose Us​​​​​​​​​​​​​​
  • Our Automatic Endotracheal Tube Assembly Machine is designed to help medical device manufacturers improve assembly efficiency, consistency and production stability. By integrating automatic feeding, precise positioning and assembly processes, the machine reduces reliance on manual operations while maintaining consistent assembly quality. It can be customized according to different endotracheal tube structures, component specifications and production requirements, including products with connectors. The equipment is developed with a focus on reliable long-term operation, flexible configuration and efficient production, making it suitable for manufacturers looking to upgrade from manual or semi-automatic assembly to a more automated production process. From machine design and process integration to assembly and quality inspection, we provide a complete automation solution based on the actual product and manufacturing requirements.​​​​​​​
    Read More
    Inquire
Optional Customizations / Non-Standard Solutions

Frequently Asked Questions

  • Q How can I get a quotation for the machine?

    A

    To receive an accurate quotation, manufacturers should provide the endotracheal tube drawings or product samples, component information, required production capacity and automation requirements. Our engineers can then evaluate the production process and recommend a suitable machine configuration.

  • Q Can quality inspection be integrated into the machine?

    A

    Yes. Inspection functions can be integrated into the production line according to the specific quality requirements of the endotracheal tube.

  • Q Can the machine be customized?

    A

    Yes. The machine can be customized according to product structure, component types, assembly processes, production capacity and factory layout.

  • Q The main advantages are reduced manual operations, improved assembly consistency, higher production efficiency and better process control.

    A

    Yes. The equipment can be customized for different endotracheal tube specifications and component configurations according to the customer's products.

  • Q What is the main advantage of an automatic endotracheal tube assembly machine?

    A

    The main advantages are reduced manual operations, improved assembly consistency, higher production efficiency and better process control.

  • Q What sizes of endotracheal tubes can the machine process?

    A

    The machine is designed for endotracheal tube sizes ranging from FR6.0 to FR8.5.

  • Q What is the production capacity of the machine?

    A

    The machine has a production capacity of approximately 700 pcs/hour.

  • Q What is an Automatic Endotracheal Tube Assembly Machine?

    A

    An Automatic Endotracheal Tube Assembly Machine is an automated production machine designed for processing and assembling endotracheal tubes. It can integrate tube forming, hot punching, tip forming, beveling, hole processing and assembly functions.
