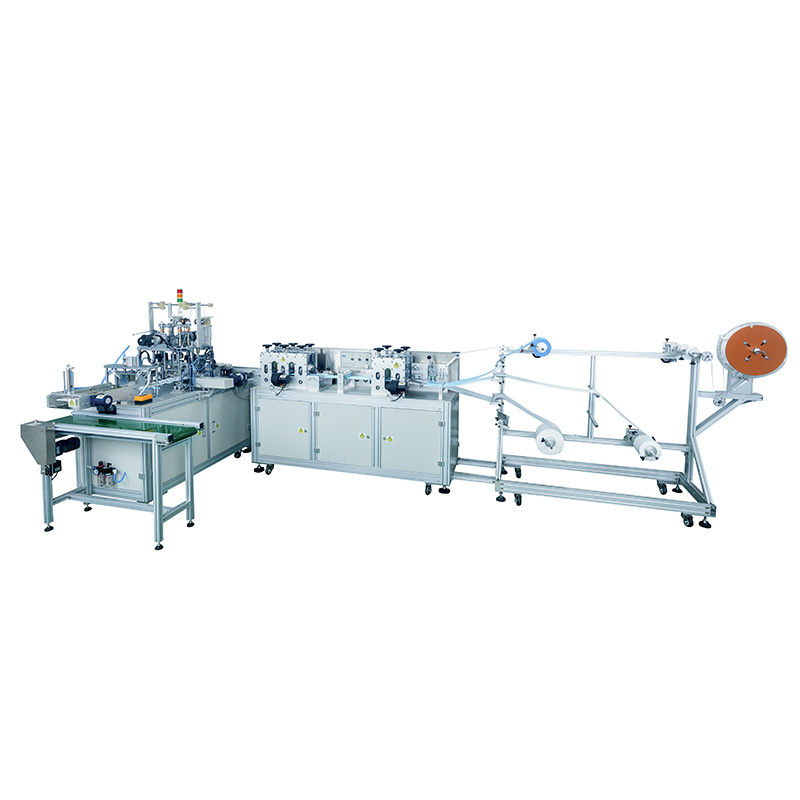

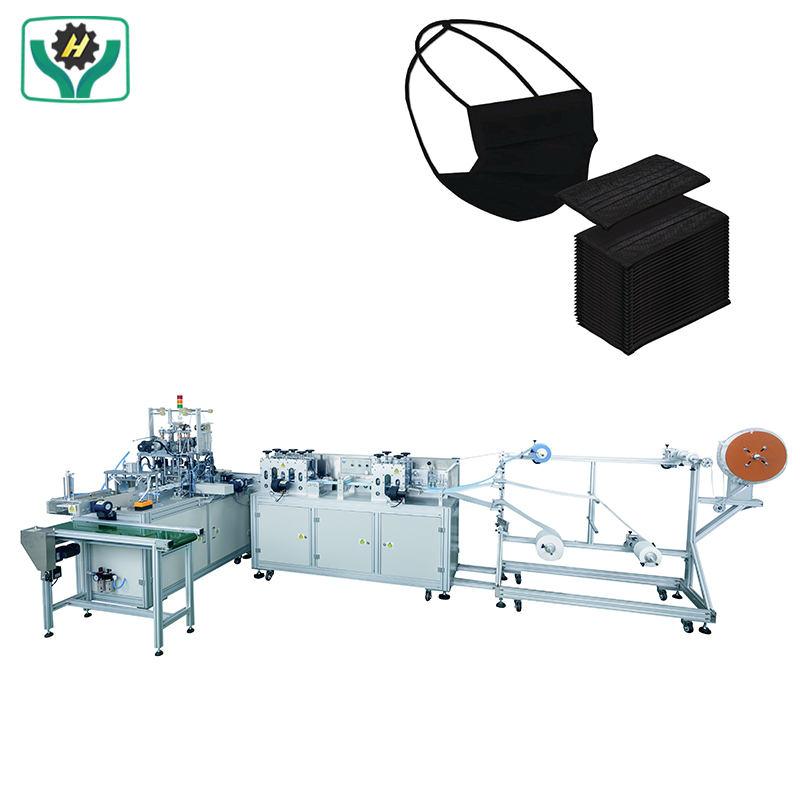

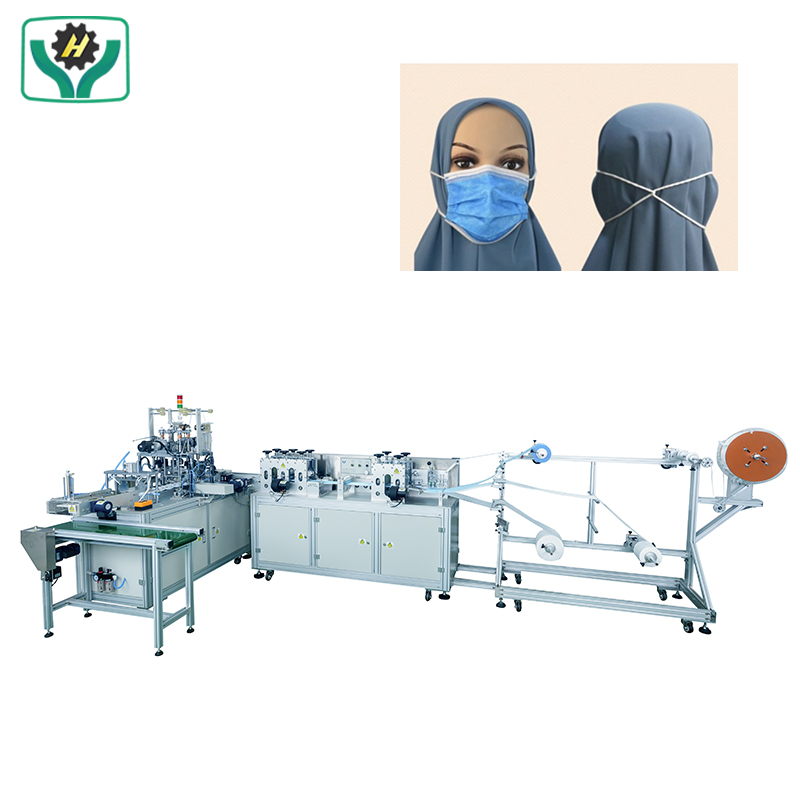

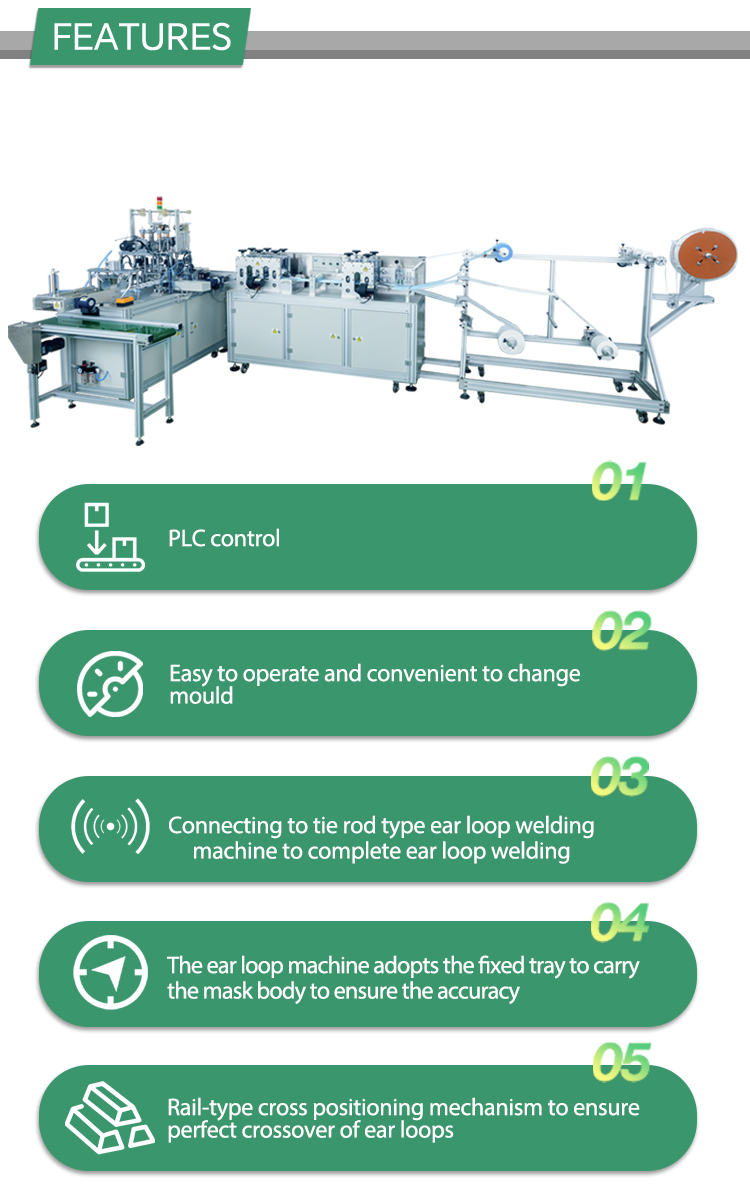

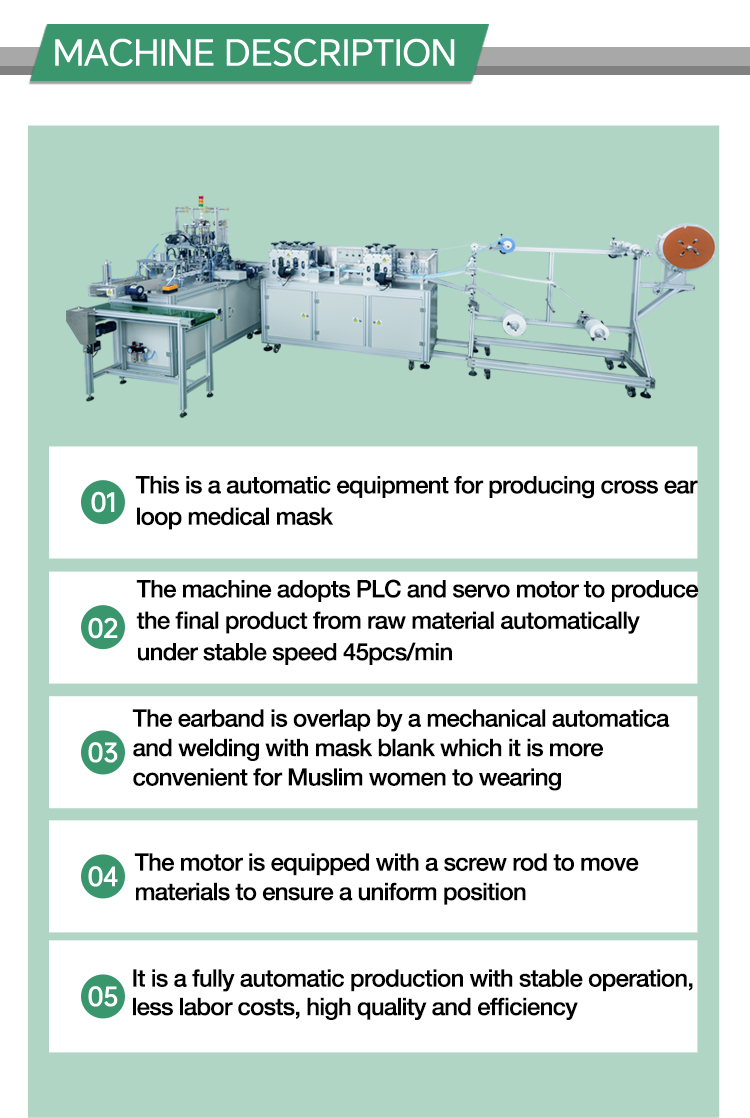

This is an automatic equipment for producing cross ear loop medical mask. The machine adopts PLC and servo motor to produce the final product from raw material automatically under stable speed 45pcs/min. The earband is overlapped by a mechanical automatica and welding with mask blank which it is more convenient for Muslim women to wear.

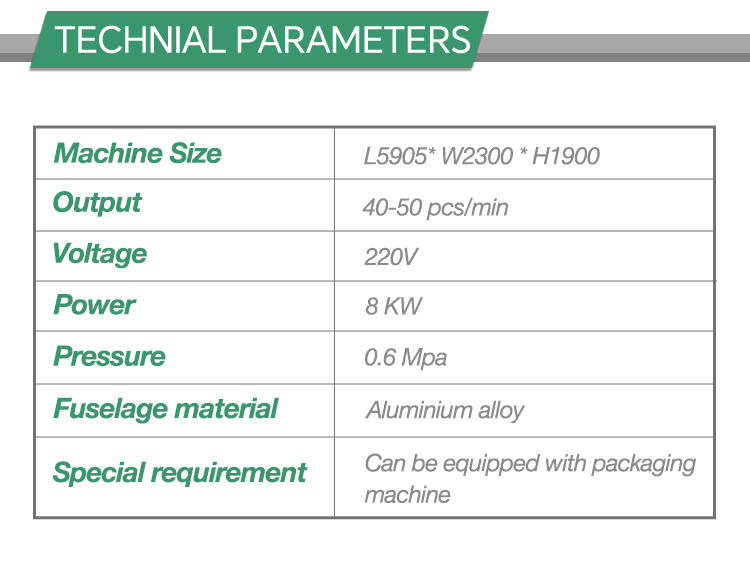

Machine Size 5905 * 2300 * 1900mm
Output 40~50 pcs/min
Voltage 220V 60HZ ≤15A
Power 8 KW
Pressure 6kg/cm²
Fuselage material Aluminium alloy
Special requirement Mask size need to be fixed
