This is a automatic equipment for producing disposable compressed towels. The machine adopts PLC and servo motor control functions, and uses hydraulic cylinder from raw materials to finished products compression molding in one time. Equipment with high production efficiency, and can have multiple devices for one operator, effectively reducing manual operation costs. Support common compression specifications: diameter of a circle is 35-45mm and the size of towel is ≤700mm-350mm, compatible with multiple expansion sizes for the same mold.
1. Machine Model No.: HY200S-01A 2. Control Mode: PLC control 3. Machine Size (mm): L3200*W2250*H2100 4. Voltage: 380V 60HZ ≤20A 5. Pressure: 6kg/cm² 6. Rated Power: 20KW 7. Capacity : According to compressed diameter，50-55 pcs/min.

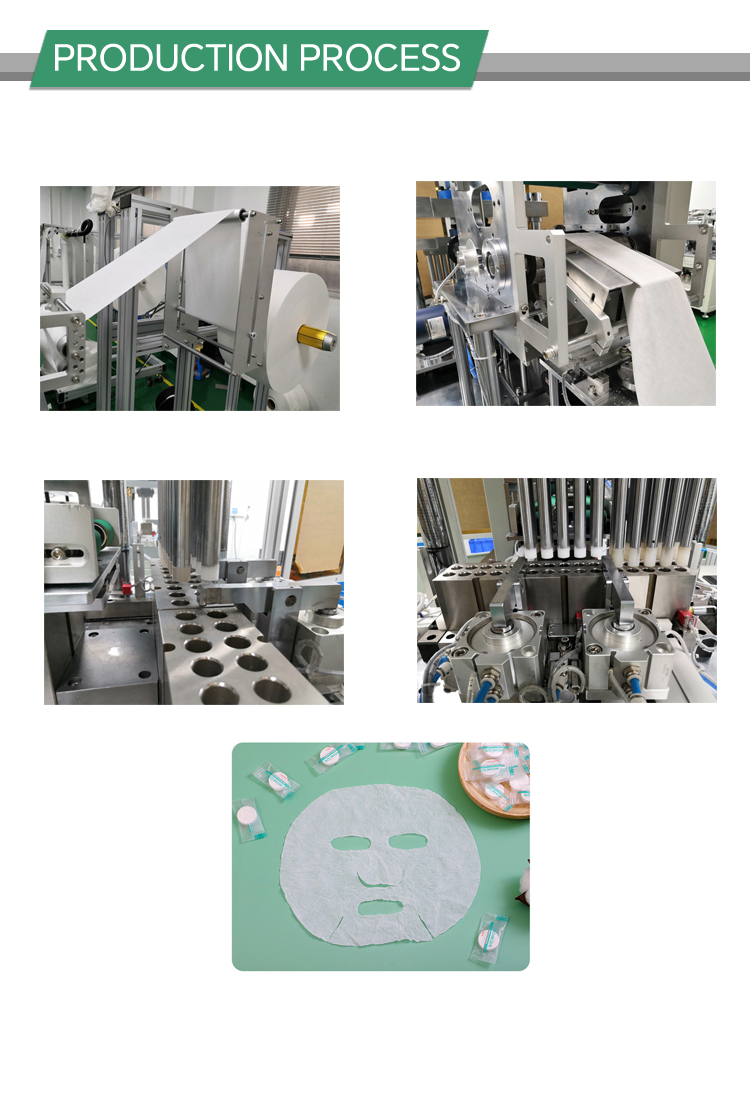

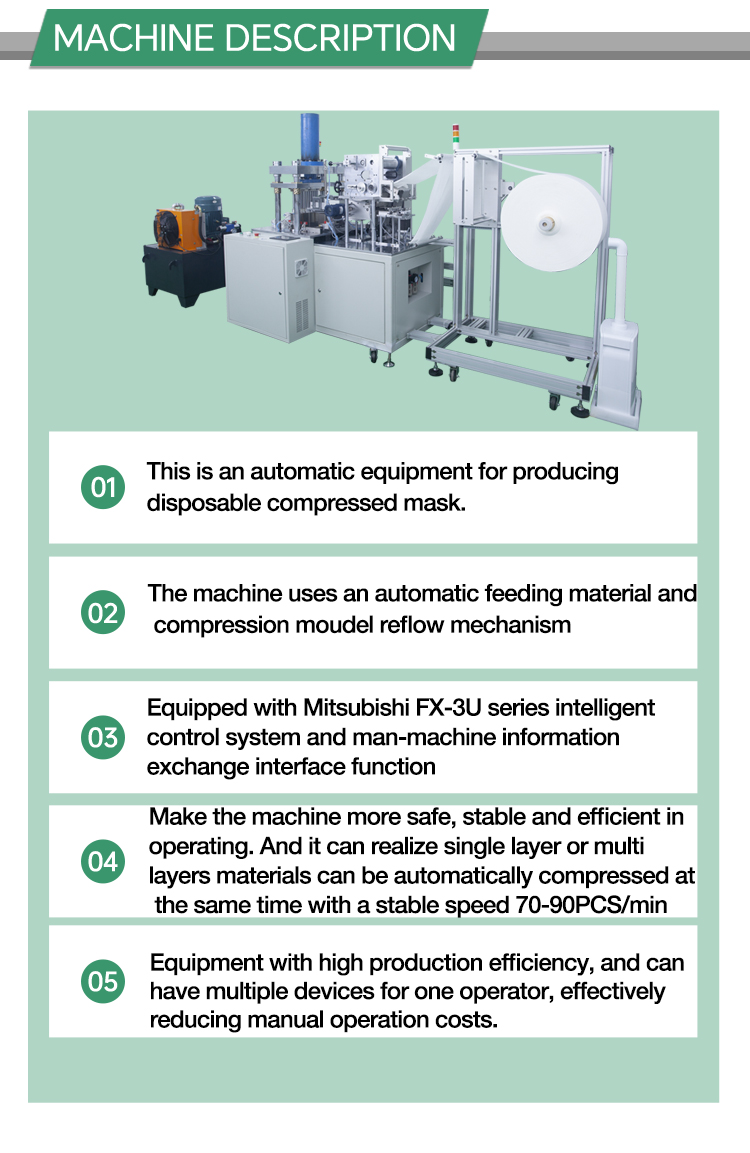

The automatic disposable compressed mask making machine is specially designed for the efficient production of compressed facial masks. It features an automatic feeding system and a compression mold recycling mechanism to ensure stable and continuous production. Equipped with the Mitsubishi FX-3U PLC intelligent control system and a user-friendly HMI interface, the machine offers safe, stable, and convenient operation. It supports both single-layer and multi-layer material compression with a stable output of 70–90 pieces per minute. Thanks to its high automation and productivity, one operator can simultaneously manage multiple machines, significantly reducing labor costs and increasing production efficiency.
