Medical consumables may look simple when viewed as finished products, but manufacturing them at commercial scale involves much more than basic assembly. Products such as nasal oxygen tubes, endotracheal tubes, HME breathing filters, surgical gowns, medical curtains and disposable masks require controlled material handling, precise forming or assembly, quality inspection and repeatable production processes.

So, how are medical consumables manufactured?

In modern factories, the manufacturing process increasingly combines specialized machinery, PLC and servo control, ultrasonic welding, automated feeding, precision assembly, inspection systems and production data management. The objective is not simply to produce more products, but to produce consistent products with controlled processes and predictable quality.

For you who are considering a new medical consumables production line, understanding the complete manufacturing workflow is essential before selecting an automation solution.

What Are Medical Consumables?

Medical consumables are products intended for use in medical, healthcare, laboratory or patient-care applications that are generally consumed, replaced or disposed of after use or after a limited period.

Common categories include:

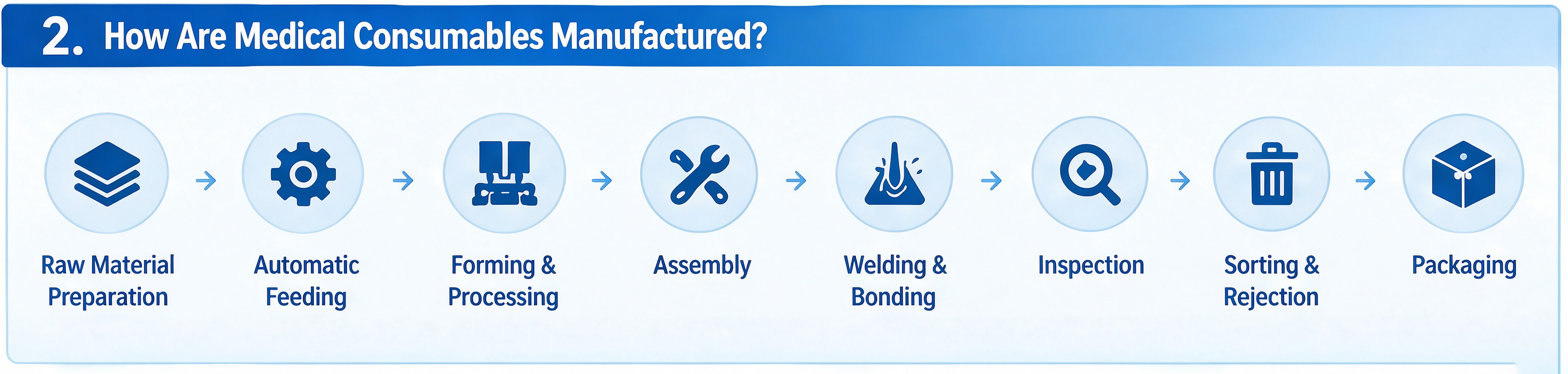

How Are Medical Consumables Manufactured?

Although every product requires a different process, most automated medical consumables manufacturing projects can be divided into eight major stages:

Raw Material Preparation → Automatic Feeding → Forming or Component Feeding → Assembly → Welding/Bonding → Inspection → Sorting → Packaging

The degree of automation at each stage determines the overall production efficiency and consistency.

1. Raw Material Preparation

The first step is preparing the materials required for production.

Depending on the product, materials may include:

• Nonwoven fabric

• Medical-grade plastic components

• PVC or other tubing materials

• Filter media

• Elastic materials

• Adhesive materials

• Connector components

• Caps, valves and other molded parts

For nonwoven products, material rolls need to be correctly loaded and aligned. For assembled medical tubing products, components often need to be sorted and positioned before assembly.

Material preparation is more important than it may appear because unstable material feeding can cause downstream problems such as dimensional variation, wrinkles, misalignment, defective welding or incomplete assembly.

In automated production, feeding systems are therefore designed around the specific characteristics of the raw material and finished product.

2. Automatic Material Feeding

Once materials are prepared, they enter the production line through an automated feeding system.

A modern automated line may use:

• Servo-driven feeding

• Pneumatic actuators

• Guide rollers

• Sensors

• Vibratory or centrifugal feeding systems

• Automatic component orientation

• Vision-based positioning

• Tension-control systems

The goal is to provide a stable and repeatable supply of materials to every production station.

For example, HengYao's automated nasal oxygen tube assembly equipment integrates component feeding and positioning with subsequent assembly and finished-product discharge. The system is designed around the customer's actual tube structure, dimensions and production requirements.

Explore the Automatic Nasal Oxygen Tube Assembly Machine

3. Product Forming and Component Processing

The next stage depends heavily on the type of medical consumable.

For nonwoven products, the machine may perform:

Unwinding → Folding → Cutting → Welding → Forming

For medical tubing products, the sequence may instead include:

Tube Feeding → Cutting/Forming → Component Positioning → Insertion → Bonding/Welding

For example, medical gowns require a very different process from nasal cannulas. HengYao's automatic surgical gown machine integrates material feeding, waistband welding, collar cutting, folding, cuff cutting, shoulder welding and forming, followed by folding and packaging.

Explore the Automatic Surgical Gown Making Machine

This is why there is no universal "medical consumables manufacturing machine." A production system should be engineered according to the product's structure and manufacturing sequence.

4. Automated Assembly

Assembly is one of the most important stages in medical consumables manufacturing.

Products with multiple components may require highly repeatable operations such as:

• Component insertion

• Tube connection

• Connector assembly

• Cap installation

• Screw locking

• Adhesive dispensing

• Component positioning

• Welding

• Press fitting

Manual assembly can work at low volumes, but it becomes increasingly difficult to maintain stable output and consistent assembly quality as production volume increases.

Automated assembly systems can coordinate several stations in a defined sequence, reducing repetitive manual operations and making production performance more predictable.

For example, HengYao's HME breathing filter assembly solution combines automatic assembly, ultrasonic welding, servo-controlled locking and airtightness testing within a single production concept.

Explore the HME Breathing Filter Assembly Machine

5. Ultrasonic Welding, Bonding and Locking

Many medical consumables use thermoplastic materials, making welding an important part of automated production.

Common joining technologies include:

Ultrasonic Welding

Ultrasonic welding uses controlled mechanical vibration to create a bond between compatible thermoplastic components. It is widely used in automated production because the process can be fast and repeatable when properly engineered.

Adhesive Dispensing

Adhesive dispensing can be used when product components require bonding rather than direct thermal welding. Automated dispensing systems help control the location and quantity of adhesive.

Servo-Controlled Locking

For threaded or mechanically locked medical components, servo control can be used to control the locking motion and improve repeatability.

The correct joining method depends on material compatibility, product geometry, required strength and validation requirements.

For example, automated HME filter assembly can incorporate ultrasonic welding and controlled locking together with airtightness testing.

6. Automated Inspection and Quality Control

Automation should not stop after assembly.

For medical consumables, inspection is a critical part of manufacturing because production processes must be capable of consistently producing products that meet predetermined specifications. FDA guidance emphasizes the importance of production and process controls, including monitoring process parameters and product characteristics where needed.

Depending on the product, automated inspection may include:

• Vision inspection

• Dimensional inspection

• Position detection

• Welding inspection

• Leak or airtightness testing

• Component-presence detection

• Defect detection

• Automatic rejection

For example, HengYao's endotracheal tube automation solution uses CCD vision to detect balloon positioning and fusion-head dimensions.

This illustrates an important principle:

A high-speed machine without effective inspection is not necessarily a high-quality manufacturing solution.

The best automation projects balance speed, repeatability, inspection capability and process stability.

7. Automatic Sorting and Defect Rejection

After inspection, acceptable and defective products can be separated automatically.

An automated sorting system may:

1. Detect a defective product.

2. Identify its position.

3. Remove it from the production flow.

4. Send qualified products to the next station.

This prevents defective units from continuing into packaging or downstream operations.

The implementation can range from simple sensor-based rejection to more advanced vision-based systems.

For higher-volume medical manufacturing, automated rejection can significantly reduce dependence on manual inspection and help create a more controlled production environment.

8. Packaging and Final Product Handling

The final production stage is packaging.

Depending on the product, packaging automation may involve:

• Counting

• Stacking

• Bagging

• Sealing

• Folding

Packaging should be considered when planning the complete production line rather than treated as an unrelated downstream process.

For example, some medical textile production lines can integrate folding and packaging after the primary manufacturing process. HengYao's surgical gown production equipment is designed to continue from product forming into folding and packaging.

Which Medical Consumables Can Be Automated?

Not every medical product requires the same level or type of automation.

Medical Tubing Products

Medical tubing products are often suitable for automated assembly because many operations are repetitive and highly structured.

Examples include:

• Nasal oxygen tubes

• Nasal cannulas

• Endotracheal tubes

• HME breathing filters

• Tubing-related assemblies

These systems may combine feeding, positioning, cutting, insertion, bonding, welding, locking and testing.

See HengYao's Medical Consumables Automation Projects

Disposable Nonwoven Medical Products

Products such as surgical gowns, isolation gowns, disposable sleeves and medical curtains can often be manufactured using automated cutting, welding, folding and forming systems.

HengYao's medical consumables product portfolio includes disposable sleeves, surgical caps, surgical gowns, slide sheets, disposable cubicle curtains, isolation gowns and disposable scrub suits.

Medical Masks

Mask production is another mature area for manufacturing automation.

An automated mask line may combine:

Material Unwinding → Tension Control → Nose-Wire Feeding → Pleat/Forming → Welding → Cutting → Ear-Loop or Head-Strap Welding → Inspection → Output

Dedicated equipment can be configured for different mask structures rather than relying on a single machine for every mask type.

HengYao currently offers equipment for dental masks, surgical masks, N95, KF94 and FFP2/FFP3 mask production.

Explore the N95 Mask Making Machine

What Are the Benefits of Medical Manufacturing Automation?

For manufacturers evaluating an automation project, the benefits should be considered in terms of the entire manufacturing system rather than simply machine speed.

1. Higher Production Efficiency

Automation allows repetitive operations to run continuously with controlled cycle times.

This is especially valuable for large-volume products where manual assembly can become a bottleneck.

2. More Consistent Product Quality

Machines can repeat predefined movements and process parameters more consistently than manual operations.

This is particularly important for products with strict dimensional, assembly or bonding requirements.

3. Reduced Dependence on Manual Labor

Automation can reduce repetitive manual operations and allow operators to focus on machine monitoring, material replenishment, quality checks and maintenance.

4. Better Process Control

PLC, servo systems and sensors can coordinate production steps and monitor machine status.

This creates a more controlled process and provides opportunities for improved traceability.

5. Easier Production Scaling

Once a stable automated process has been validated, manufacturers can scale production through additional shifts, additional machines or expanded production lines.

6. Lower Production Variability

Stable feeding, positioning, welding and inspection can help reduce variation caused by repetitive manual work.

What Should You Consider Before Buying a Medical Consumables Manufacturing Machine?

Product information including finished product samples, product drawings, dimensions, material specifications, component list, assembly sequence and packaging requirements should be prepared. It is necessary to define production requirements such as target output, daily working hours, number of shifts, expected annual production and required automation level. You also need to identify quality requirements covering critical dimensions, welding requirements, assembly tolerances, leak-testing requirements, vision inspection requirements and defect rejection criteria. In addition, factory conditions including available floor space, power supply, compressed air, cleanroom requirements, operator arrangement, material storage and downstream packaging shall be taken into account. A capable automation supplier should evaluate all these factors before finalizing machine configuration rather than selecting equipment merely based on catalog specifications.

HengYao describes its medical consumables projects as being configured according to the customer's product structure, samples, production requirements and downstream process requirements.

Frequently Asked Questions About Medical Consumables Manufacturing

What is medical consumables manufacturing?

Medical consumables manufacturing is the process of producing disposable or frequently replaced healthcare products through operations such as material preparation, forming, assembly, welding, inspection and packaging.

What machines are used to manufacture medical consumables?

The equipment depends on the product. Typical systems include medical consumables assembly machines, tube assembly machines, nonwoven welding machines, mask making machines, ultrasonic welding systems, vision inspection systems, leak testers and packaging machines.

Can medical consumables manufacturing be fully automated?

Yes, many products can be manufactured with highly automated production lines. However, the actual automation level depends on product complexity, output requirements, inspection requirements, material characteristics and investment objectives.

What medical products are suitable for automated assembly?

Products with repetitive and clearly defined assembly steps are strong candidates, including nasal oxygen tubes, HME breathing filters, endotracheal tubes and other component-based medical consumables.

How do I choose a medical consumables manufacturing machine?

Start with your product sample, drawings, materials, production target and quality requirements. Then evaluate the required feeding, assembly, welding, inspection and packaging processes.

Why is ultrasonic welding used in medical consumables manufacturing?

Ultrasonic welding can provide fast and repeatable joining for suitable thermoplastic materials. Its suitability depends on the material combination, component design and required bond performance.

Is automation suitable for small medical manufacturers?

It can be. Smaller manufacturers can consider semi-automatic or modular automation first and expand automation as production volume increases.

What is the difference between a standard machine and a customized medical production line?

A standard machine typically performs a predefined process. A customized production line is configured around the customer's specific product structure, materials, output and inspection requirements.

HengYao Automation develops automated production equipment for medical consumables, including nasal oxygen tube assembly, HME breathing filter assembly, endotracheal tube assembly, surgical gown production, disposable medical curtain production and other non-standard automation projects.
